Innova Bio-Meditech is one of the world's leading suppliers of laboratory and medical equipment , with a mission to share advanced biotech and medical technology solutions globally. The company focuses on the fields of Biology, Life Science, Pharmaceutical Industry, and Medical Treatment. Innova has established three R&D centers in Beijing, Qingdao, Shanghai, and international standard manufacturing plants.

As a partner in Vietnam, we offer high-quality laboratory water solutions that optimally support scientific research, medicine, and pharmaceuticals. All Innova water purification systems achieve ISO, TÜV, and CE certifications, reflecting the spirit of:

“The passion for science”

We are committed to providing reliable, durable water systems that optimize operating costs.

The Critical Role of Pure Water in Labs

Water constitutes 70–99% of the components in most biochemical, analytical, and cell culture reactions. However, common tap water contains various contaminants that can skew experimental results, be toxic to cells, or damage expensive equipment.

Contaminant Type

Examples

Impact on Experiment

Inorganic Ions

Na⁺, Ca²⁺, Mg²⁺, Cl⁻

Interferes with ICP-MS/AAS signals; causes cell death; leads to scale formation in HPLC

Organic Compounds (TOC)

Humic acid, phenol

Alters pH; inhibits enzymes; causes high baseline in HPLC/GC-MS

Microorganisms

Bacteria, molds

Contaminates samples; damages cell cultures, PCR

Particles & Colloids

Dust, silica, suspended residue

Clogs chromatography columns; blurs UV-Vis spectra

Endotoxin / RNase

Pyrogen, RNA-degrading enzymes

Causes cell shock; degrades RNA in qPCR, sequencing

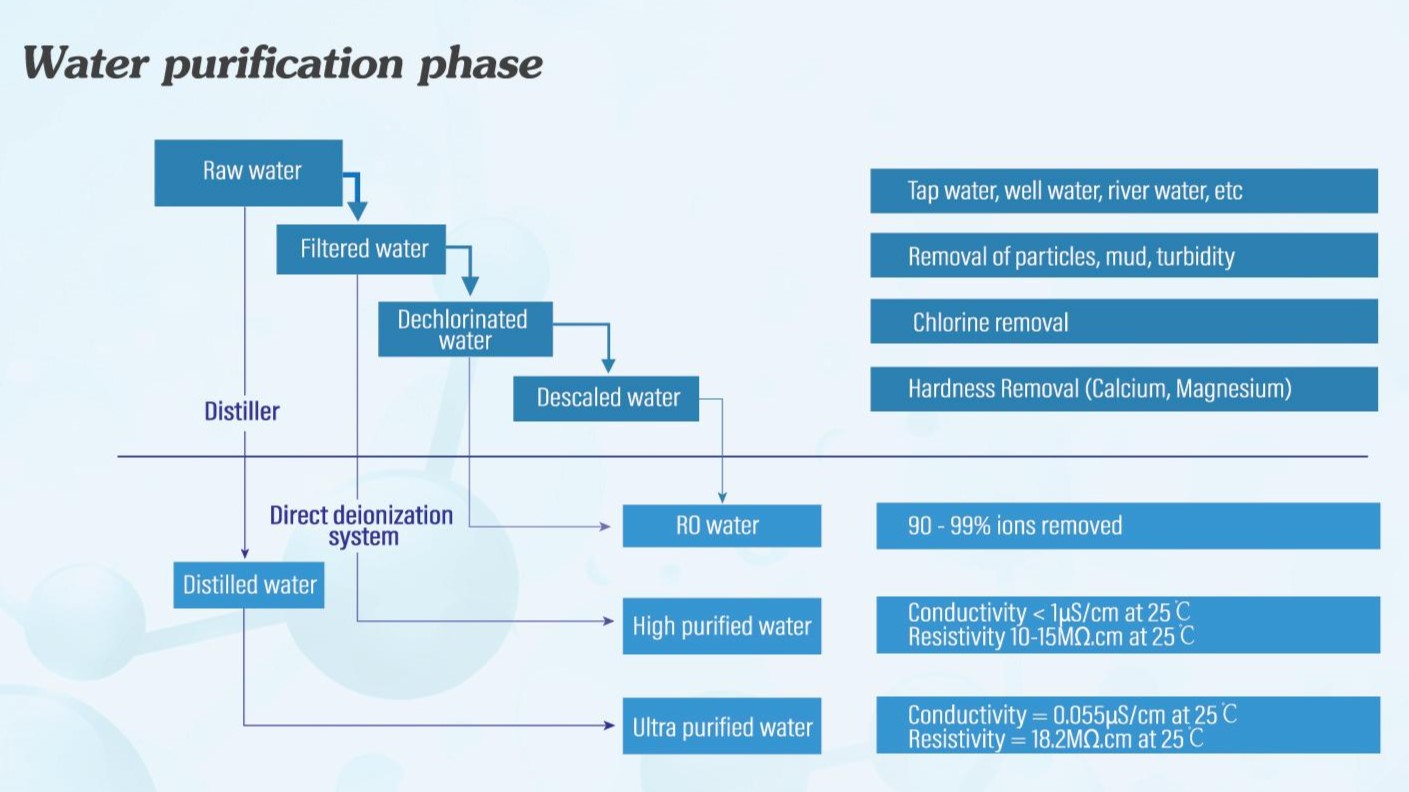

Laboratory Water Purification Process and Quality Standards

The purification process starts from raw water and progresses through multiple stages to achieve high purity. Quality parameters increase progressively, moving from high conductivity in raw water to high resistivity in ultra-pure water, ensuring suitability for sensitive experiments.

Stage

Resistivity (MΩ.cm)

Conductivity (µS/cm)

TOC (ppb)

RO Water

~0.05–0.2

< 20

< 50

Purified Water

10–15

< 0.1

< 30

Ultra-Purified Water

> 18.2

< 0.056

< 5

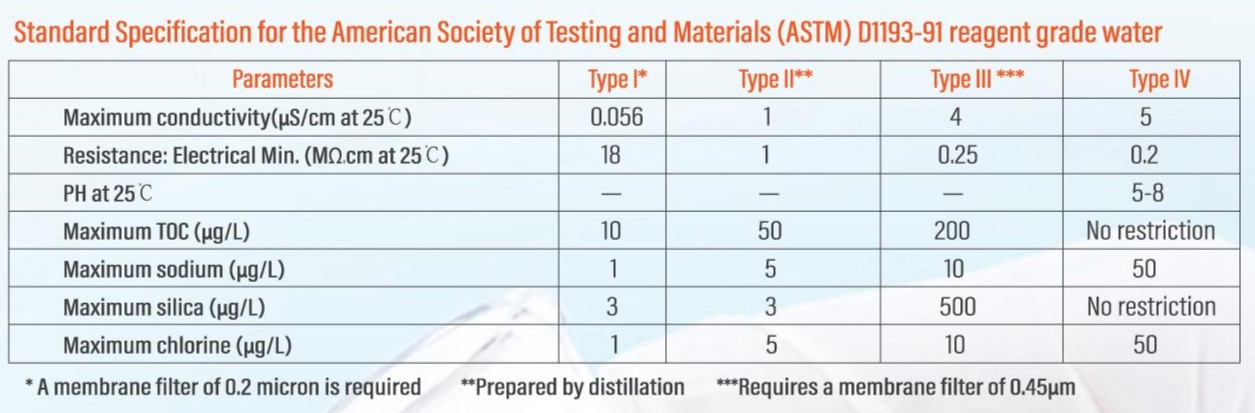

International Standards for Laboratory Water Selection

Based on practical applications and the ASTM D1193-91 standard , laboratory water is categorized into four main grades:

The selection of the required water type depends on the specific application. Innova offers suitable product series to optimize both performance and cost efficiency for customers

Water Type

Main Application

Key Standard (ASTM)

Suggested Series

Type III

Rinsing glassware, preparing basic solutions.

Conductivity < 4.0 uS/cm

TOC <200 ppb

Nova C300/500

Classic C300/500

Type II

Cell culture, HPLC, ICP, ion analysis.

Resistivity > 1.0 MΩ.cm

TOC <5 ppb

Bacteria <10 CFU/ml

Nova EU10/15/20

Performa E10/15/20

Classic D15/20/25

Type I

Sensitive HPLC, GC-MS, DNA sequencing, sensitive molecular experiments.

Resistivity > 18 MΩ.cm

TOC < 10 ppb

Bacteria < 1 CFU/ml

Endotoxin < 0.03 EU/ml

Nova U

Nova Zero-Ion

Performa U

Understanding the required water type and purification process is the essential first step to ensuring accurate, reliable, and cost-effective experimental results.

If you require further consultation on Innova water purification systems, please contact us for specialized support!
